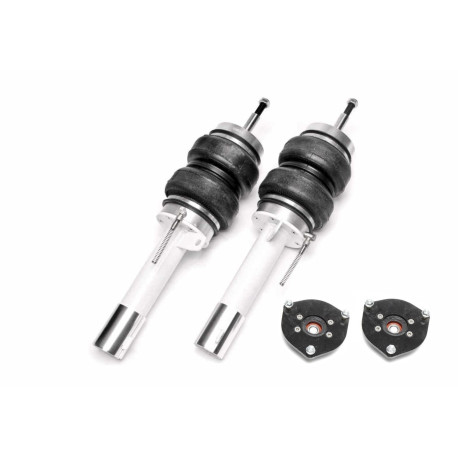

TA-Technix air suspension kit with adjustment system for Volkswagen Golf Sportsvan - Alltrack Typ AUV

TA Technix air damper set front axle
with additional thread adjustment system

consisting of:
- 2x VA air damper with thread adjustment system
- 2x air bellows incl. adapter plates
- 2x air connection incl. bend protection
- 2x steel flex line

suitable for:
Audi TT/TT Roadster incl. Quattro, type 8S, year of construction 2014 -
Audi A3/S3 incl. Sportback, type 8V, year of construction 2013 -
Audi Q2, model GH, year of manufacture 2016 -
Audi TT, model 8S, year of manufacture 2014 -
Seat Ateca, model 5FP, year of manufacture 2016 -
Seat Leon III, model 5F, year of manufacture 2012 -
Skoda Octavia III, - estate, type 5E, year of manufacture 2013 -
Skoda Superb III, - estate, type 3V, year of manufacture 2015 -
Volkswagen Arteon, model 3H, year of manufacture 2017 -
Volkswagen Golf VII, - Variant, type AU, AUV, year of manufacture 2013 -
Volkswagen Golf Sportsvan, - Alltrack, type AUV, year of manufacture 2014 -
Volkswagen Passat, - Variant, Type 3C/B8/3G, Year of manufacture 2014 -
Volkswagen Tiguan, model 5N,AD, year of manufacture 2016 -
Volkswagen Touran, model 1T,5T, year of manufacture 2015
incl. 4-WD models
50mm and 55mm suspension strut

Approval:

Individual parts/spare parts are not permitted within the scope of the StVZO. However, in a set, as a complete air suspension including parts certificate (§19.3).

Implementation notes:

With additional thread adjustment system

Notes:

50mm and 55mm strut diameter, we recommend using shorter coupling rods, e.g. B. EVOPE003
The clearance between the wheels/tires and the shock absorber should be at least 5mm. If the distance is smaller, the minimum distance must be established by suitable measures. When using standard wheel/tire combinations, commercially available wheel spacers are required.

Axle:

Front axle

KeyType number:

21804,21897,23695,26743,26753,26760,35666,50895,53263,53313,53360,53772,54775,55092,55093,55094,55095,55481,55590,55591,55592,55593,55594,55595,55596,55597,55598,55599,55600,56144,56147,57430,57437,57438,57460,57461,57592,57594,57597,58759,58765,58946,58947,58948,59070,59115,59116,59120,59244,59246,59289,59488,59489,59490,59601,59610,59611,59616,59617,59618,59619,59621,59624,59629,59630,59631,59676,59677,59679,59680,100039,100040,100042,100043,100044,100046,100050,100074,100075,100774,100775,100776,100777,100787,100788,100790,100791,100799,100800,100931,101038,101157,105627,105628,105748,105911,105912,105919,106221,106222,106223,106225,106226,106227,106229,106231,106367,106369,106371,106374,106375,106376,106378,106379,106380,106381,106382,106383,106415,106416,106611,106613,106635,106644,106654,106657,108612,108613,108615,108616,108628,108629,108630,108631,108634,108635,108636,108644,108648,108649,109842,112296,112379,112382,112383,112384,112385,112386,112387,112388,113320,115104,115105,115160,115161,115193,115194,115210,115581,115584,116310,118000,118001,118002,118030,118645,118892,118893,120193,120607,120608,120609,120613,120616,120617,120618,120620,120627,120629,120632,120633,121601,121603,121604,121605,125703,125718,125719,125720,125943,125944,125996,126002,126003,126007,126625,126829,126831,126840,127056,127988,128000,128995,,119967,119966,119965,119964,119963,119962,119961,119960,106596,106597,106601,108396,108397,108398,108402,108403,115102,115103,115134,115135,115137,115138,121959,121956,118088,118087,,124179,124178,119702,119697,119701,119700,119698,119696,119695,,112394,112397,112398,112399,113304,113308,113310,113313,115163,115164,115165,115166,115167,115168,115169,115232,115233,115235,115236,115237,115238,115239,124077,124069,124068,122007,121841,120210,120209,119768,119766,119690,119767,113149,117884,117812,117811,113148,113150,113151,120208
