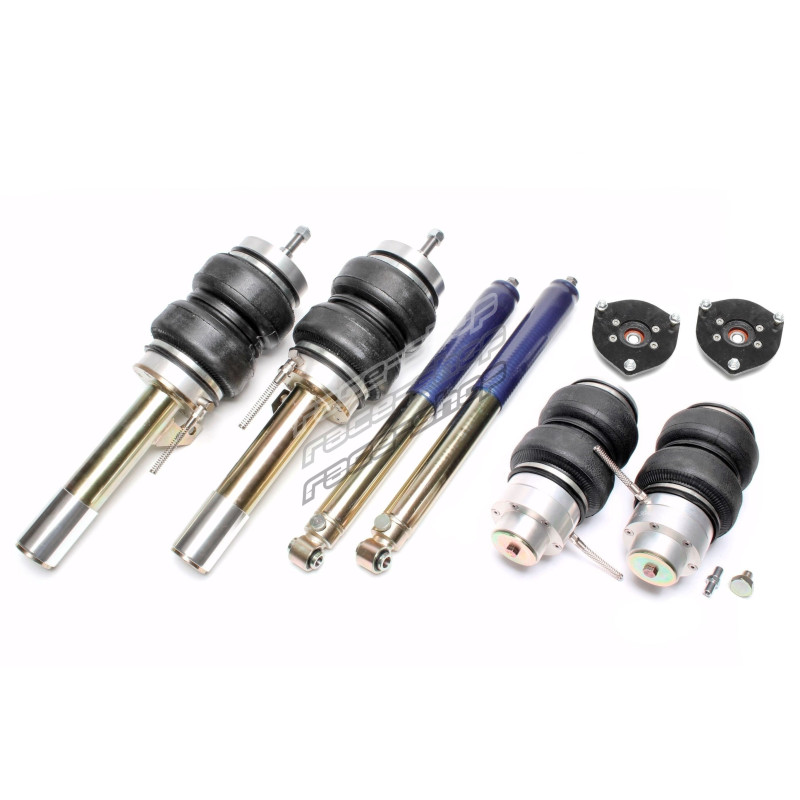

TA-Technix air suspension set for Volkswagen Golf VI Typ 1K

TA Technix hardness-adjustable air damper set for air suspension / airride

suitable for:
Volkswagen Golf VI, - Variant, - Cabriolet, Type 1K_
year of construction 2008 - 2013
excl. 4-WD models
50mm and 55mm shock absorber
maximum front axle load: 1190kg
maximum rear axle load: 1220kg

Approval:

Including parts report (§19.3)

Implementation notes:

VA = hardness adjustment - infinitely variable using the adjustment wheel from above,
HA = via adjustment knob on the damper body (compression + rebound at the same time)

Notes:

Front-wheel drive models
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

Front + Rear axle

KeyType number:

4535,6055,8207,8208,8209,8210,8211,8212,9621,10431,10524,11973,24942,28480,29990,29991,29992,29993,29994,29995,30969,30970,30971,31340,32063,32585,32586,32589,32601,32606,32609,32625,33030,33031,34793,34795,34879,53583,58748,58749,59290,115171,115173,115175
