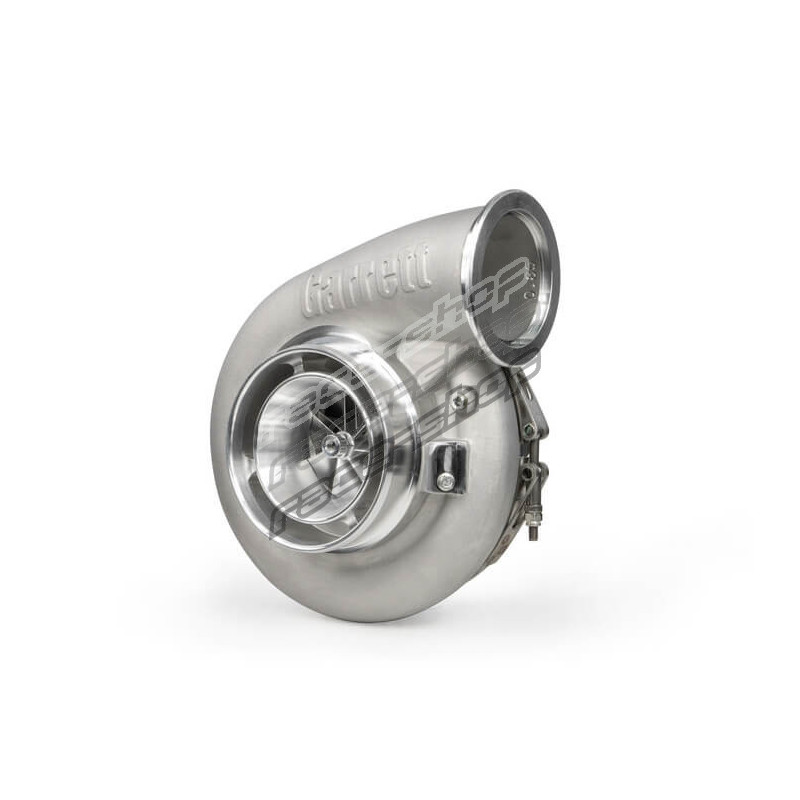

Garrett 934173-5004S Supercore G-X Race GXR45-73, Trim 52

Garrett GXR45-73 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GXR (G-X Race) turbochargers.

When the stakes are high, only the best turbocharger will get you to the finish line. The Garrett G-XRace is made for those who know that winning is about being the fastest, going race after race.

Specifications

• Frame: GXR45
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 73.9 mm inducer, 102 mm exducer, 52 trim, 0.85 A/R
• Turbine wheel: 89 mm inducer, 82 mm exducer, 84 trim
• Power: up to 1500 HP
• Displacement: 2.0-8.0 L

Fits & compatible parts

• Compatible turbochargers: GXR45-67, G45-1125, G45-1350

Features

• Product Features
• XBoost technology increases power and performance
• +29% compressor consumption (GXR45-67 vs. G45-1125)
• +11% compressor consumption (GXR45-73 vs. G45-1350)
• Expanded pressure ratio options and higher boost pressures
• Increased efficiency at high flow rates
• Reduced inlet temperature
• Lightweight aluminum back plate
