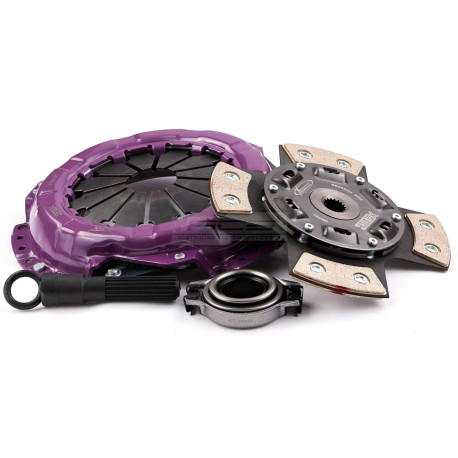

KNI22002-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 446Nm 600kg (30%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 446Nm
• Clamp load 600kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI22002-1B

Weight: 6.28

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 18
Clutch Disc Spline Diameter (mm): 20.5
Torque (Nm): 450
Flywheel Step: +.25mm/.010""
Design: Single Plate
Stage: Stage 2
Clamp Load: 600Kg (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Nissan/100NX/B13 | 2.0 GTI/1991.03-1994.10/SR20DE 1998 Petrol 105 kW 143 BHP (1991.03 - 1994.10)
Nissan/Almera/N16 | 1.8/2002.10-2006.09/QG18DE 1769 Petrol 85 kW 116 BHP (2002.10 - 2006.09)
Nissan/Almera/N16 | 1.8/2000.01-2002.11/QG18DE 1769 Petrol 84 kW 114 BHP (2000.01 - 2002.11)
Nissan/Almera Tino/2.0/2000.08-2003.01/SR20DE 1998 Petrol 100 kW 136 BHP (2000.08 - 2003.01)
Nissan/Almera/N15 | 2.0 GTi/1996.07-2000.03/SR20DE 1998 Petrol 105 kW 143 BHP (1996.07 - 2000.03)
Nissan/Avenir/W11 | 1.8/1997.11-2005.12/QG18DE 1769 Petrol 92 kW 125 BHP (1997.11 - 2005.12)
Nissan/Bluebird/U11 | 1.8/1983.11-1988.06/CA18S 1809 Petrol 66 kW 90 BHP (1983.11 - 1988.06)
Nissan/Bluebird/T72, T12 | 1.6/1986.03-1991.06/CA16S 1598 Petrol 66 kW 90 BHP (1986.03 - 1991.06)
Nissan/Bluebird/T72, T12 | 1.6/1986.03-1990.06/CA16S 1598 Petrol 61 kW 83 BHP (1986.03 - 1990.06)
Nissan/Bluebird/WU11 | 1.8/1983.11-1990.04/CA18S 1809 Petrol 66 kW 90 BHP (1983.11 - 1990.04)
Nissan/Prairie/M10 | 1.8 SGL/1985.05-1987.10/CA18S 1809 Petrol 66 kW 90 BHP (1985.05 - 1987.10)
Nissan/Prairie/M10 | 1.8 SGL/1983.07-1985.12/CA18S 1809 Petrol 65 kW 88 BHP (1983.07 - 1985.12)
Nissan/Primera/P10 | 2.0 GT/1990.06-1996.01/SR20DE 1998 Petrol 110 kW 150 BHP (1990.06 - 1996.01)
Nissan/Primera/P10 | 2.0/1995.01-1996.06/SR20DE 1998 Petrol 92 kW 125 BHP (1995.01 - 1996.06)
Nissan/Primera/P11 | 1.8 16V/1999.08-2002.07/QG18DE 1769 Petrol 84 kW 114 BHP (1999.08 - 2002.07)
Nissan/Primera/P11 | 2.0 16V/1996.06-2002.07/SR20DE 1998 Petrol 110 kW 150 BHP (1996.06 - 2002.07)
Nissan/Primera/P11 | 2.0 16V/1996.06-2001.12/SR20DE 1998 Petrol 105 kW 143 BHP (1996.06 - 2001.12) Until 09/1997,
Nissan/Primera/P11 | 2.0 16V/1999.08-2002.07/SR20DE 1998 Petrol 103 kW 140 BHP (1999.08 - 2002.07)
Nissan/Primera/P11 | 2.0 16V/1996.06-2002.07/SR20DE 1998 Petrol 96 kW 131 BHP (1996.06 - 2002.07)
Nissan/Primera/P11 | 2.0 16V/1996.06-2002.07/SR20DE 1998 Petrol 85 kW 115 BHP (1996.06 - 2002.07)
Nissan/Primera/P10 | 2.0/1990.06-1993.04/SR20DE 1998 Petrol 105 kW 143 BHP (1990.06 - 1993.04)
Nissan/Primera/W10 | 2.0/1994.07-1998.01/SR20DE 1998 Petrol 110 kW 150 BHP (1994.07 - 1998.01)
Nissan/Primera/WP11 | 1.8 16V/1999.08-2001.12/QG18DE 1769 Petrol 84 kW 114 BHP (1999.08 - 2001.12)
Nissan/Primera/WP11 | 2.0 16V/1999.08-2001.12/SR20DE 1998 Petrol 103 kW 140 BHP (1999.08 - 2001.12)
Nissan/Primera/WP11 | 2.0 16V/1998.04-2001.12/SR20DE 1998 Petrol 96 kW 131 BHP (1998.04 - 2001.12)
Nissan/Primera/WP11 | 2.0 16V/1996.06-2001.12/SR20DE 1998 Petrol 85 kW 115 BHP (1996.06 - 2001.12)
Nissan/Sunny/B13/N14 | 2.0 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05)
Nissan/Sunny/B13/N14 | 2.0 GTI 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05) ,
