KHN20522-1E Xtreme Performance Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

Nov izdelek

Dobavljivo po naročilu : 2ks

Najkasneje na vašem domu: 13. 10.

1.233,30 € z DDV

KHN20522-1E

9337467156072

Povpraševanje o izdelku

Povpraševanje o izdelku

KHN20522-1E Xtreme Performance Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

KHN20522-1E Xtreme Performance Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

Vprašanje o tem izdelku pošljite lastniku trgovine.

* Obvezna polja

  ali  Prekliči

Notify me

Notify me about the stock

KHN20522-1E Xtreme Performance Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

KHN20522-1E Xtreme Performance Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

-1E

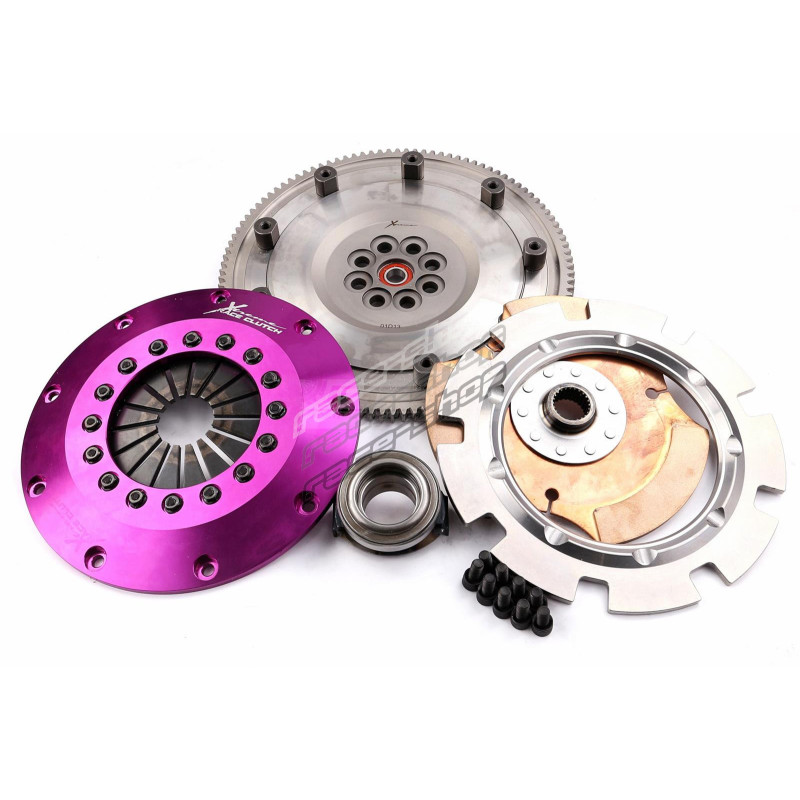

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Clamping Force1000kg
Torque Rating900Nm
Bearing Contact Diameter44-52mm
Bearing Load (@ 48mm)218kg
Release Travel Required6mm
Assembly Mass (without flywheel)5.15kg
Disc Set Static Mass0.9kg
Friction Thickness New7mm (0.275")
Friction Thickness Worn5.7mm (0.235")

Product Features:

  • Rigid driven disc
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design

Tech. Info:

Reference: KHN20522-1E

Weight: 9.050000000000001

Note:

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 610
Flywheel Step: +2.2mm
Design: Single Plate
Stage: Track Use Only
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:

200mm Single Plate

Suitable for:

- Honda/Civic/Gen. V | 1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
Honda/Civic/Gen. V | 1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
Honda/Civic/Gen. VI | 1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)
Honda/Civic/Gen. VI | 1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)
Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11)
Honda/Integra/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08)
Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11)
Honda/Integra/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11)
Honda/Civic/Gen. VI | 1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)
Honda/Civic/Gen. VI | 1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)
Honda/Integra/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10)
Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12)
Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02)
Honda/CR-V/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) ,

Napiši mnenje

Napiši mnenje







  ali  Prekliči

Did not find your question?
Enter new question
Do you have a question? Search for an answer.




ZnamkaModelTypeKoda motorja
HondaCR-V2.0 (RD1)B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02)
HondaCR-V2.0 16V 4WD (RD1. RD3)B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12)
HondaCR-V2.0 16V 4WD (RD1. RD3)B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02)
HondaCivicGen. V 1.6 VTi (EG9)B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
HondaCivicGen. V 1.6 VTi 16V (EG6)B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
HondaCivicGen. VI 1.6 VTi (EK4)B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)
HondaCivicGen. VI 1.6 i Vtec (EM1)B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)
HondaCivicGen. VI 1.8 16V (MB6)B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)
HondaCivicGen. VI 1.8 16V (MC2)B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)
HondaIntegra1.8 (DC2)B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11)
HondaIntegra1.8 (DC2)B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11)
HondaIntegra1.8 ESI (DB7)B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08)
HondaIntegra1.8 Type-R (DC2)B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10)
HondaIntegra1.8 VTiR (DC2)B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11)
