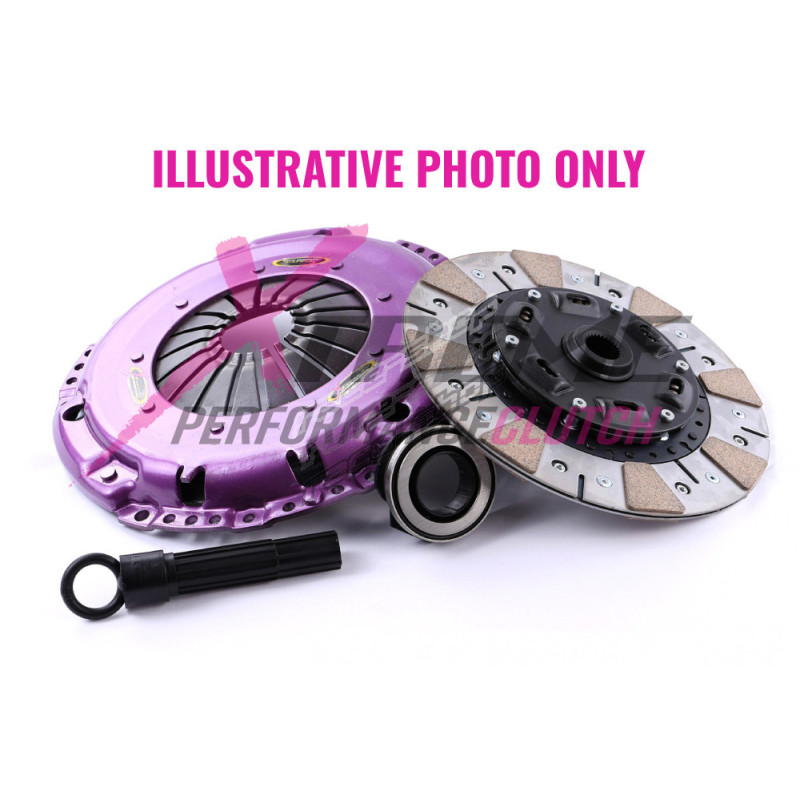

KGM26004-1C Clutch Kit Xtreme Performance Heavy Duty Cushioned Ceramic 690Nm

Xtreme Performance - Cushioned Ceramic kit /-1CRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 690Nm
• Clamp load Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM26004-1C

Weight: 10.23

Note:

Clutch Disc Diameter (mm): 255
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 690
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Clamp Load:
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Holden/H Series/HZ | 4.1/1977.10-1980.04/41X 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden/H Series/VK | 5.0 V8/1985.01-1985.12/4987 Petrol 122 kW 166 BHP (1985.01 - 1985.12)
Holden/H Series/VK | 5.0 V8/1985.06-1986.03/4987 Petrol 122 kW 166 BHP (1985.06 - 1986.03)
Holden/H Series/VK | 5.0 V8/1985.01-1985.12/50H 5044 Petrol 117 kW 159 BHP (1985.01 - 1985.12)
Holden/H Series/VB | 5.0 V8/1978.10-1980.12/50H 5044 Petrol 125 kW 170 BHP (1978.10 - 1980.12)
Holden/H Series/VH | 5.0 V8/1981.09-1984.03/50H 5044 Petrol 126 kW 171 BHP (1981.09 - 1984.03)
Holden/H Series/VK | 5.0 V8/1984.03-1985.05/50H 5044 Petrol 126 kW 171 BHP (1984.03 - 1985.05)
Holden/H Series/5.0/1977.10-1980.04/50H 5044 Petrol 179 kW 243 BHP (1977.10 - 1980.04)
Holden/H Series/HZ | 5.0/1977.10-1980.03/50HC 5044 Petrol 161 kW 219 BHP (1977.10 - 1980.03)
Holden/H Series/VB | 5.0 V8/1978.10-1980.03/50HL 5044 Petrol 114 kW 155 BHP (1978.10 - 1980.03)
Holden/H Series/VC | 5.0 V8/1980.04-1981.09/50HL 5044 Petrol 114 kW 155 BHP (1980.04 - 1981.09)
Holden/H Series/4.2 V8/1980.04-1985.12/GMH 253 (Blue) 4142 Petrol 100 kW 136 BHP (1980.04 - 1985.12)
Holden/H Series/4.2 V8/1980.04-1985.12/GMH 253 (Blue) 4142 Petrol 115 kW 156 BHP (1980.04 - 1985.12)
Holden/H Series/4.2/1977.10-1978.05/GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1978.05)
Holden/H Series/HZ | 4.2/1977.10-1980.04/GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden/H Series/VL | 5.0 V8/1986.03-1988.08/GMH 304 (Black) 4987 Petrol 122 kW 166 BHP (1986.03 - 1988.08)
Holden/H Series/VK | 5.0 V8/1984.03-1986.03/GMH 308 (Black) 5044 Petrol 117 kW 159 BHP (1984.03 - 1986.03)
Holden/H Series/VC | 5.0/1980.04-1981.09/GMH 308 (Blue) 5044 Petrol 115 kW 156 BHP (1980.04 - 1981.09)
Holden/H Series/VH | 5.0 V8/1981.09-1984.03/GMH 308 (Blue) 5044 Petrol 117 kW 159 BHP (1981.09 - 1984.03)
Holden/H Series/VC | 5.0 V8/1980.04-1981.09/GMH 308 (Blue) 5044 Petrol 126 kW 171 BHP (1980.04 - 1981.09)
Holden/H Series/VL | 5.0 V8/1984.03-1985.05/GMH 308 4987 Petrol 117 kW 159 BHP (1984.03 - 1985.05)
Holden/H Series/VL | 4.9 V8/1986.06-1988.01/GMH 308 4987 Petrol 122 kW 166 BHP (1986.06 - 1988.01)
Holden/Commodore/VK | 4.9 V8/1984.03-1985.05/VU 4987 Petrol 122 kW 166 BHP (1984.03 - 1985.05) ,
