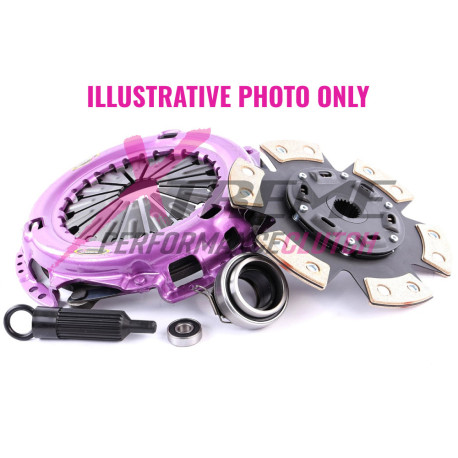

KGM20009-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 340Nm 550kg (20%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 340Nm
• Clamp load 550kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM20009-1B

Weight: 4.75

Note:

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 14
Clutch Disc Spline Diameter (mm): 18.8
Torque (Nm): 340
Flywheel Step: -19.0mm/.748""
Design: Single Plate
Stage: Stage 2
Clamp Load: 550Kg (20% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Vauxhall/Cavalier/Gen. II | 1.6 D/1982.03-1988.08/16 D 1598 Diesel 40 kW 54 BHP (1982.03 - 1988.08)
Vauxhall/Astra/E | 1.6 D/1985.09-1991.08/16 D, 16 DA 1598 Diesel 40 kW 54 BHP (1985.09 - 1991.08)
Vauxhall/Cavalier/Gen. II | 1.6 D/1982.03-1988.08/16 DA 1598 Diesel 40 kW 54 BHP (1982.03 - 1988.08)
Vauxhall/Astra/E | 1.6 D/1984.09-1989.12/16 DA 1598 Diesel 40 kW 54 BHP (1984.09 - 1989.12)
Vauxhall/Astra/E | 1.6/1984.09-1991.08/16 SV 1598 Petrol 60 kW 82 BHP (1984.09 - 1991.08)
Vauxhall/Cavalier/Gen. III | 1.6/1988.09-1993.05/16 SV 1598 Petrol 60 kW 82 BHP (1988.09 - 1993.05)
Vauxhall/Cavalier/Gen. III | 1.7 D/1988.09-1992.09/17 D 1699 Diesel 42 kW 57 BHP (1988.09 - 1992.09)
Vauxhall/Astra/E | 1.7 D/1989.01-1991.12/17 D 1699 Diesel 42 kW 57 BHP (1989.01 - 1991.12)
Vauxhall/Astra/F | 1.7 D/1991.12-1998.02/17 D 1699 Diesel 42 kW 57 BHP (1991.12 - 1998.02)
Vauxhall/Astra/E | 1.7 D/1988.09-1991.08/17 DR 1699 Diesel 42 kW 57 BHP (1988.09 - 1991.08)
Vauxhall/Astravan/F | 1.7 D (F70)/1991.10-1994.12/17 DR 1699 Diesel 44 kW 60 BHP (1991.10 - 1994.12)
Vauxhall/Cavalier/Gen. III | 1.7 D/1992.07-1995.11/17 DR 1699 Diesel 44 kW 60 BHP (1992.07 - 1995.11)
Vauxhall/Astra/F | 1.7 D/1992.07-1998.09/17 DR 1699 Diesel 44 kW 60 BHP (1992.07 - 1998.09)
Vauxhall/Astravan/F | 1.6 i (F70)/1991.10-1998.08/C 16 NZ 1598 Petrol 55 kW 75 BHP (1991.10 - 1998.08)
Vauxhall/Cavalier/Gen. II | 1.6 i Cat/1986.08-1988.08/C 16 NZ, C 16 LZ 1598 Petrol 55 kW 75 BHP (1986.08 - 1988.08)
Vauxhall/Cavalier/Gen. III | 1.6 i/1988.09-1995.11/C 16 NZ, E 16 NZ 1598 Petrol 55 kW 75 BHP (1988.09 - 1995.11)
Vauxhall/Astra/F | 1.6 i/1991.09-1998.02/C 16 NZ, E 16 NZ, X 16 SZR, 16 NZR 1598 Petrol 55 kW 75 BHP (1991.09 - 1998.02)
Vauxhall/Astra/F | 1.6 i/1992.03-1998.02/C 16 SE 1598 Petrol 74 kW 100 BHP (1992.03 - 1998.02)
Opel/Corsa/1.6 GSI Cat/1992.02-1993.03/C 16 SE 1598 Petrol 74 kW 101 BHP (1992.02 - 1993.03)
Vauxhall/Nova/1.6 GSI Cat/1992.02-1993.03/C 16 SE 1598 Petrol 74 kW 101 BHP (1992.02 - 1993.03)
Holden/H Series/TR | 1.6 CD/1995.08-1998.01/C 16 SE 1598 Petrol 74 kW 101 BHP (1995.08 - 1998.01)
Opel/Corsa/1.6 GSI/1989.09-1993.03/C 16 SEI 1598 Petrol 72 kW 98 BHP (1989.09 - 1993.03)
Vauxhall/Nova/1.6 GSI/1989.09-1993.03/C 16 SEI 1598 Petrol 72 kW 98 BHP (1989.09 - 1993.03)
Vauxhall/Cavalier/Gen. II | 1.6 i/1986.08-1988.08/E 16 NZ 1598 Petrol 55 kW 75 BHP (1986.08 - 1988.08)
Opel/Corsa/1.6 GSI/1988.05-1992.03/E 16 SE 1598 Petrol 74 kW 100 BHP (1988.05 - 1992.03)
Vauxhall/Nova/1.6 GSI/1988.05-1992.03/E 16 SE 1598 Petrol 74 kW 100 BHP (1988.05 - 1992.03)
Vauxhall/Cavalier/Gen. III | 1.6 i/1993.09-1995.11/X 16 SZ 1598 Petrol 52 kW 71 BHP (1993.09 - 1995.11)
Vauxhall/Astra/F | 1.6 i/1994.07-1998.02/X 16 SZ 1598 Petrol 52 kW 71 BHP (1994.07 - 1998.02)
Vauxhall/Astravan/F | 1.6 i (F70)/1994.09-1996.08/X 16 SZ 1598 Petrol 52 kW 71 BHP (1994.09 - 1996.08)
Holden/Barina/SB | 1.6i/1994.04-1998.08/X 16 XE 1598 Petrol 78 kW 104 BHP (1994.04 - 1998.08) ,
