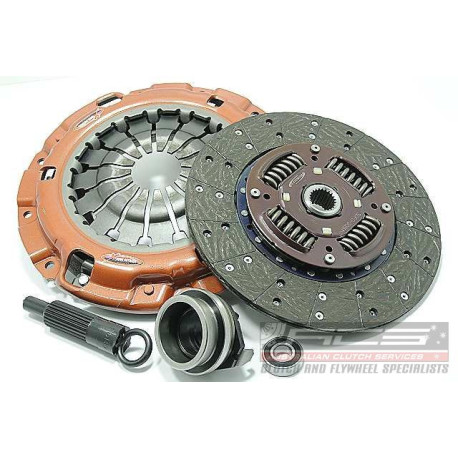

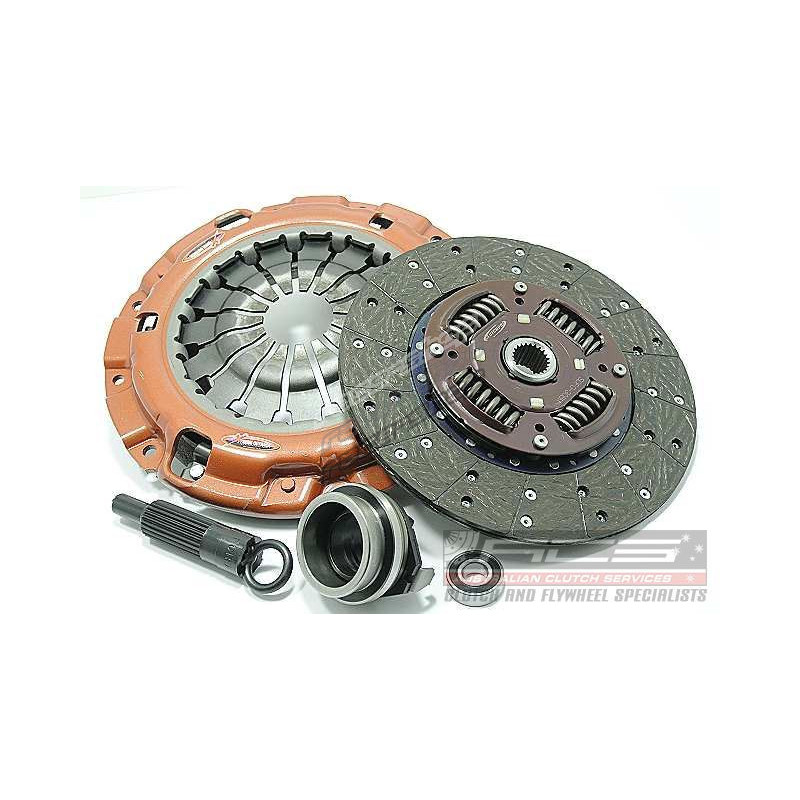

KFD25025-1A Clutch Kit Xtreme Outback Heavy Duty Organic 530Nm 1100Kg (25% inc)

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:

• Torque capacity 530Nm
• Clamp load 1100Kg 25% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KFD25025-1A

Weight: 8.869999999999999

Note:

Torque (Nm): 530
Clamp Load: 1100kg (25% inc)
Flywheel Step: -18.5mm
Clutch Disc Diameter (mm): 250
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Stage: Stage 1

Suitable for:

- Ford/Ranger/2.5 TDdi/2009.04-2011.11/2499 Diesel 105 kW 143 BHP (2009.04 - 2011.11)
Ford/Ranger/2.5 TDdi 4x4/2009.04-2011.11/2499 Diesel 105 kW 143 BHP (2009.04 - 2011.11)
Ford/Ranger/2.5 TDdi/2006.11-2009.03/2500 Diesel 105 kW 143 BHP (2006.11 - 2009.03)
Ford/Ranger/2.5 TDdi 4x4/2006.11-2009.03/2500 Diesel 105 kW 143 BHP (2006.11 - 2009.03)
Ford/Ranger/2.5 TDdi/2009.03-2011.11/2500 Diesel 105 kW 143 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDCi/2006.05-2012.07/MD30DITC 2953 Diesel 115 kW 156 BHP (2006.05 - 2012.07)
Mazda/BT-50/3.0 CDVi 4x4 (UNY0E3)/2006.10-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.10 - 2015.12)
Ford/Ranger/3.0 TDdi/2006.11-2009.03/WEAT 2953 Diesel 115 kW 156 BHP (2006.11 - 2009.03)
Ford/Ranger/3.0 TDdi 4x4/2006.11-2009.03/WEAT 2953 Diesel 115 kW 156 BHP (2006.11 - 2009.03)
Mazda/BT-50/3.0 CDVi (UNY0E3)/2006.12-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.12 - 2015.12)
Mazda/BT-50/3.0 CDVi 4x4 (UNY0E3)/2006.12-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.12 - 2015.12)
Ford/Ranger/3.0 TDdi/2009.03-2011.11/WEAT 2953 Diesel 115 kW 156 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDdi 4x4/2009.03-2011.11/WEAT 2953 Diesel 115 kW 156 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDCi 4x4/2006.05-2012.07/WEC, MD30DITC 2953 Diesel 115 kW 156 BHP (2006.05 - 2012.07)
Ford/Ranger/2.5 TDCi 4x4/2006.05-2012.07/WLAA 2499 Diesel 105 kW 143 BHP (2006.05 - 2012.07)
Ford/Ranger/2.5 TDdi/2006.05-2012.07/WLAA 2499 Diesel 105 kW 143 BHP (2006.05 - 2012.07)
Mazda/BT-50/2.5 MRZ-CD (UNY0W3)/2006.08-2013.06/WLAA 2499 Diesel 105 kW 143 BHP (2006.08 - 2013.06)
Mazda/BT-50/2.5 MRZ-CD 4x4 (UNY0W3)/2006.12-2015.12/WLAA 2499 Diesel 105 kW 143 BHP (2006.12 - 2015.12)
Mazda/BT-50/2.5 CDVi (UNY0W3)/2006.12-2015.12/WLAT (16 V) 2500 Diesel 105 kW 143 BHP (2006.12 - 2015.12) ,
