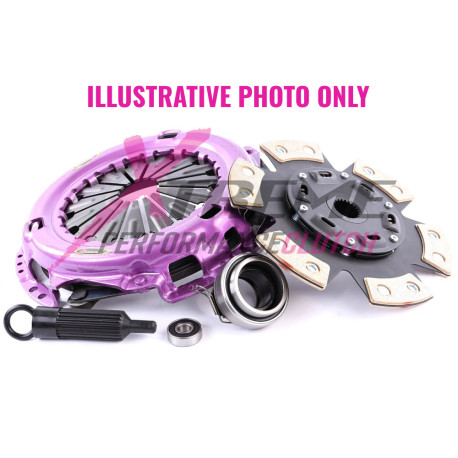

KBU26001-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 840Nm 1050kg (20%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 840Nm
• Clamp load 1050kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KBU26001-1B

Weight: 10.83

Note:

Clutch Disc Diameter (mm): 265
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 840
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Clamp Load: 1050Kg (20% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Chevrolet/Corvette/C2 | 5.4/1962.10-1965.12/327 5354 Petrol 187 kW 254 BHP (1962.10 - 1965.12)
Holden/H Series/5.0/1968.07-1969.06/5025 Petrol 157 kW 214 BHP (1968.07 - 1969.06)
Holden/H Series/5.0/1969.06-1970.08/5025 Petrol 157 kW 214 BHP (1969.06 - 1970.08)
Holden/H Series/HK | 5.0/1968.01-1969.05/50HL 5044 Petrol 157 kW 214 BHP (1968.01 - 1969.05)
Holden/H Series/HG | 5.3/1970.07-1971.07/5363 Petrol 205 kW 279 BHP (1970.07 - 1971.07)
Holden/H Series/5.4/1968.07-1969.06/54C 5361 Petrol 186 kW 253 BHP (1968.07 - 1969.06)
Holden/H Series/HK | 5.3/1968.01-1969.05/54C 5363 Petrol 186 kW 253 BHP (1968.01 - 1969.05)
Holden/H Series/HG | 5.3/1970.08-1971.07/54I 5361 Petrol 206 kW 280 BHP (1970.08 - 1971.07)
Holden/H Series/HT | 5.3/1969.05-1970.07/54I 5363 Petrol 224 kW 305 BHP (1969.05 - 1970.07)
Chevrolet/Corvette/C2 | 5.4/1963.10-1965.12/L84(327CUV8) 5357 Petrol 280 kW 380 BHP (1963.10 - 1965.12)
Chevrolet/Corvette/C2 | 5.4/1962.10-1967.12/LF7 5354 Petrol 224 kW 305 BHP (1962.10 - 1967.12)
Pontiac/Firebird/5.0/1981.12-1989.10/LG4 5002 Petrol 112 kW 152 BHP (1981.12 - 1989.10) ,
