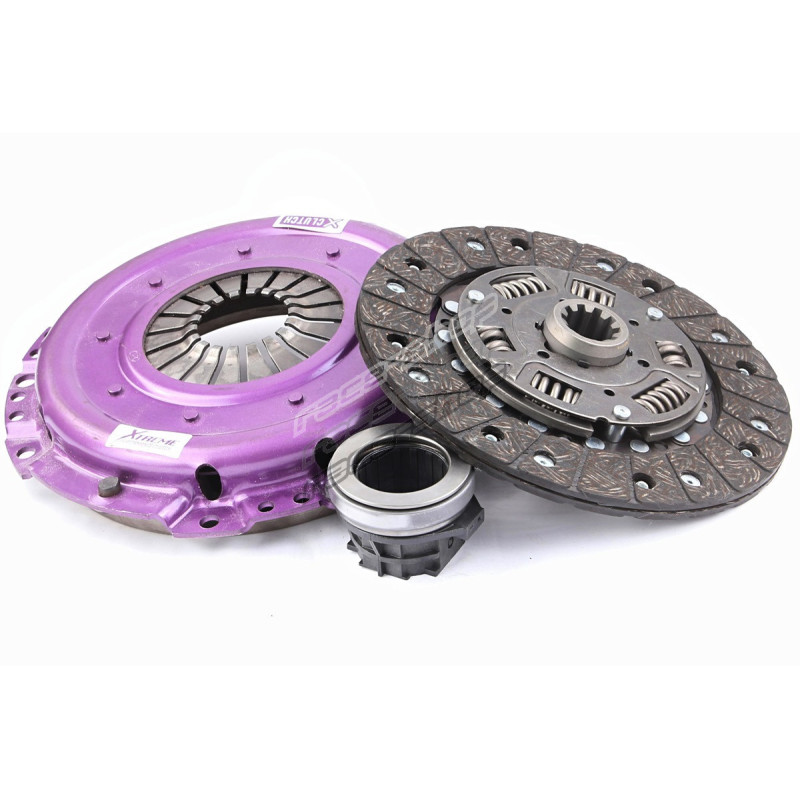

KBM22002-1A Clutch Kit Xtreme Performance Heavy Duty Organic

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity Nm
• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KBM22002-1A

Weight: 6.2

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 29
Torque (Nm):
Flywheel Step:
Design: Single Plate
Stage: Stage 1
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- BMW/3-Series/E30 | 316i/1987-1991/1596cc | 73KW | 100HP | M40 B16 (164E1) (1987-1991)
BMW/3-Series/E36 | 316i/1991-1993/1596cc | 73KW | 100HP | M40 B16 (164E1) (1991-1993)
BMW/3-Series/E30 | 316i/1991-1994/1596cc | 73KW | 100HP | M40 B16 (164E1) (1991-1994)
BMW/3-Series/E30 | 316i/1988-1991/1596cc | 75KW | 102HP | M40 B16 (164E1) (1988-1991)
BMW/3-Series/E30 | 316i/1991-1994/1596cc | 75KW | 102HP | M40 B16 (164E1) (1991-1994)
BMW/3-Series/E36 | 316i/1993-1998/1596cc | 75KW | 102HP | M43 B16 (164E2) (1993-1998)
BMW/3-Series/E36 | 316i/1994-2000/1596cc | 75KW | 102HP | M43 B16 (164E2) (1994-2000)
BMW/3-Series/E36 | 316i/1997-1999/1596cc | 75KW | 102HP | M43 B16 (164E2) (1997-1999)
BMW/3-Series/E30 | 316 (Ecotronic)/1983-1988/1766cc | 66KW | 90HP | M10 B18 (184VD) (1983-1988)
BMW/3-Series/E30 | 318i/1984-1988/1766cc | 75KW | 102HP | M10 B18 (184KA) (1984-1988)
BMW/3-Series/E30 | 318 i Baur TC/1982-1990/1766cc | 77KW | 105HP | M10 B18 (184EA), M10 B18 (184EB), M10 B18 (184EZ) (1982-1990)
BMW/3-Series/E30 | 318i/1982-1987/1766cc | 77KW | 105HP | M10 B18 (184EA);M10 B18 (184EB);M10 B18 (184EZ) (1982-1987)
BMW/3-Series/E30 | 318is/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) , Without A/C, 4 & 5 Speed
BMW/3-Series/E36 | 318i/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995)
BMW/3-Series/E36 | 318is/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) , Without A/C
BMW/3-Series/E36 | 318is/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) , Without A/C
BMW/3-Series/E36 | 318Ti/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) , Without A/C
BMW/3-Series/E30 | 318i/1987-1991/1796cc | 83KW | 113HP | M40 B18 (184E1) (1987-1991)
BMW/3-Series/E30 | 318i/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994)
BMW/3-Series/E36 | 318i/1990-1993/1796cc | 83KW | 113HP | M40 B18 (184E1) (1990-1993)
BMW/3-Series/E30 | 318i/1987-1991/1796cc | 85KW | 115HP | M40 B18 (184E1) (1987-1991)
BMW/3-Series/E36 | 318i/1993-1998/1796cc | 85KW | 115HP | M43 B18 (184E2) (1993-1998)
BMW/3-Series/E36 | 318i/1994-1999/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1999)
BMW/3-Series/E36 | 318i/1995-1999/1796cc | 85KW | 116HP | M43 B18 (184E2) (1995-1999) ,
