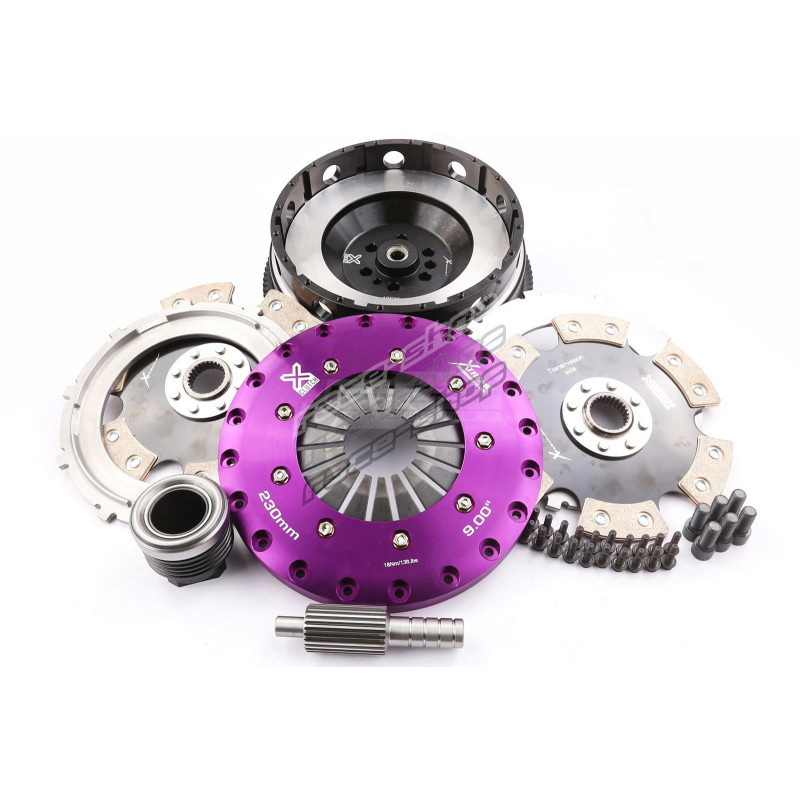

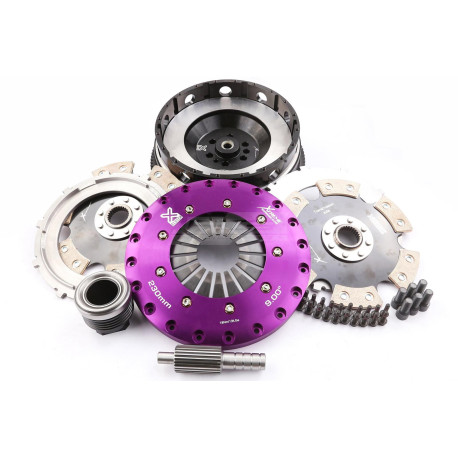

KBM23560-2E Xtreme Performance 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Nov izdelek
KBM23560-2E
9337467326833
Pripomočki
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KBM23560-2E
Weight: 17.2
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 35
Torque (Nm): 1830
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information: Conversion from dual-mass flywheel to single-mass flywheel
230mm Twin Plate
Suitable for:
- BMW/2-Series/F22, F87 | M2/2015-2018/2979cc | 272KW | 370HP | N55 B30 A (2015-2018)
BMW/2-Series/F22, F87 | M2 Competition/2018.06-2021.06/2979cc | 302KW | 411HP | S55 B30 A (2018.06-2021.06)
BMW/4-Series/F32, F82 | M4/2014.03-2020.06/2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06)
BMW/4-Series/F33, F83 | M4/2014.03-2020.06/2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06)
BMW/3-Series/F30, F80 | M3/2014-2018/2979cc | 317KW | 431HP | S55 B30 A (2014-2018)
BMW/3-Series/F30, F80 | M3 Competition/2016-2018/2979cc | 331KW | 450HP | S55 B30 A (2016-2018)
BMW/2-Series/F22, F87 | M2 CS/2019.11-2021.06/2979cc | 331KW | 450HP | S55 B30 A (2019.11-2021.06) ,
- Napiši mnenje
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Znamka | Model | Type | Koda motorja |
|---|---|---|---|
| BMW | 2-Series | F22, F87 M2 | 2979cc 272KW 370HP N55 B30 A (2015-2018) |
| BMW | 2-Series | F22, F87 M2 CS | 2979cc 331KW 450HP S55 B30 A (2019.11-2021.06) |
| BMW | 2-Series | F22, F87 M2 Competition | 2979cc 302KW 411HP S55 B30 A (2018.06-2021.06) |
| BMW | 3-Series | F30, F80 M3 | 2979cc 317KW 431HP S55 B30 A (2014-2018) |
| BMW | 3-Series | F30, F80 M3 Competition | 2979cc 331KW 450HP S55 B30 A (2016-2018) |
| BMW | 4-Series | F32, F82 M4 | 2979cc 317KW 431HP S55 B30 A (2014.03-2020.06) |
| BMW | 4-Series | F33, F83 M4 | 2979cc 317KW 431HP S55 B30 A (2014.03-2020.06) |
