*366 503

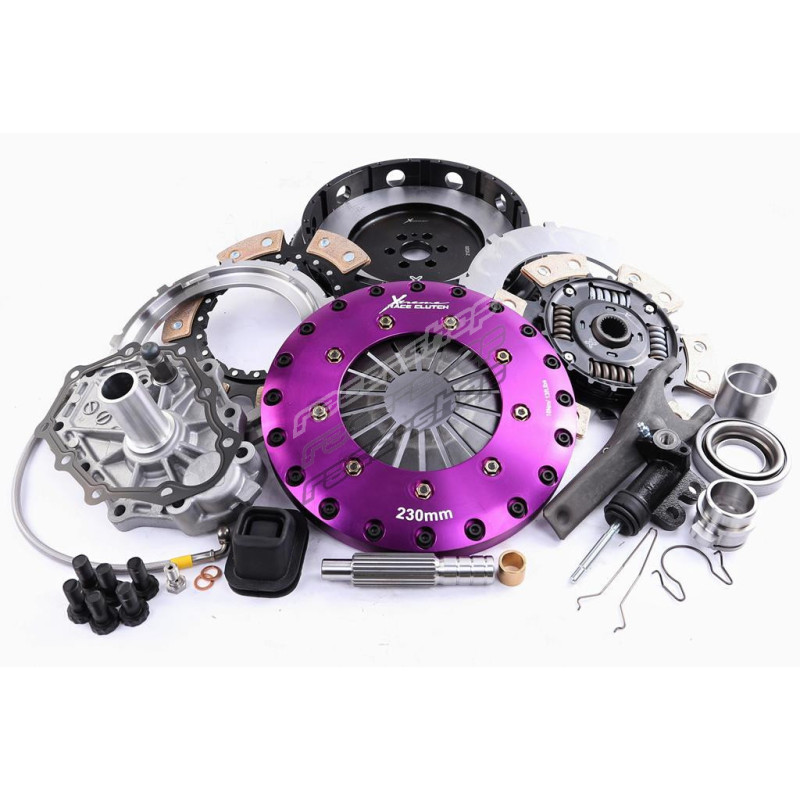

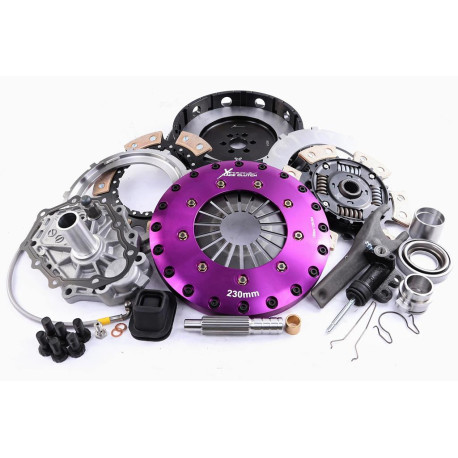

KNI23582-2B Xtreme Performance 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Nov izdelek
KNI23582-2B
9337467306491
Pripomočki
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KNI23582-2B
Weight: 19.81
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 1000
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 1350Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Pull to Push Type conversion
Suitable for:
- Nissan/Stagea/WC34 | 2.5/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
Nissan/Stagea/WC34 | 2.5 AWD/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
Nissan/Skyline/R34 | 2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan/Stagea/WC34 | 2.5 Turbo AWD/1996.09-2001.10/RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)
Nissan/Skyline/R34 | 2.5/1998.06-2006.01/RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)
Nissan/Skyline/R34 | 2.5/1998.05-2002.08/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)
Nissan/Skyline/R34 | 2.5 Turbo/1998.05-2006.01/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)
Nissan/Skyline/R32 | 2.6 Twin Turbo 4x4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
Nissan/Skyline/R33 | 2.6 Twin Turbo 4x4/1994.07-1999.09/RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)
Nissan/Stagea/WC34 | 2.6 Twin Turbo/1996.09-2001.10/RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10) ,
- Napiši mnenje
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Znamka | Model | Type | Koda motorja |
|---|---|---|---|
| Nissan | Skyline | R32 2.6 Twin Turbo 4x4 | RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06) |
| Nissan | Skyline | R33 2.6 Twin Turbo 4x4 | RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09) |
| Nissan | Skyline | R34 2.5 4x4 | RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01) |
| Nissan | Stagea | WC34 2.5 AWD | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.5 | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.5 Turbo AWD | RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.6 Twin Turbo | RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10) |
