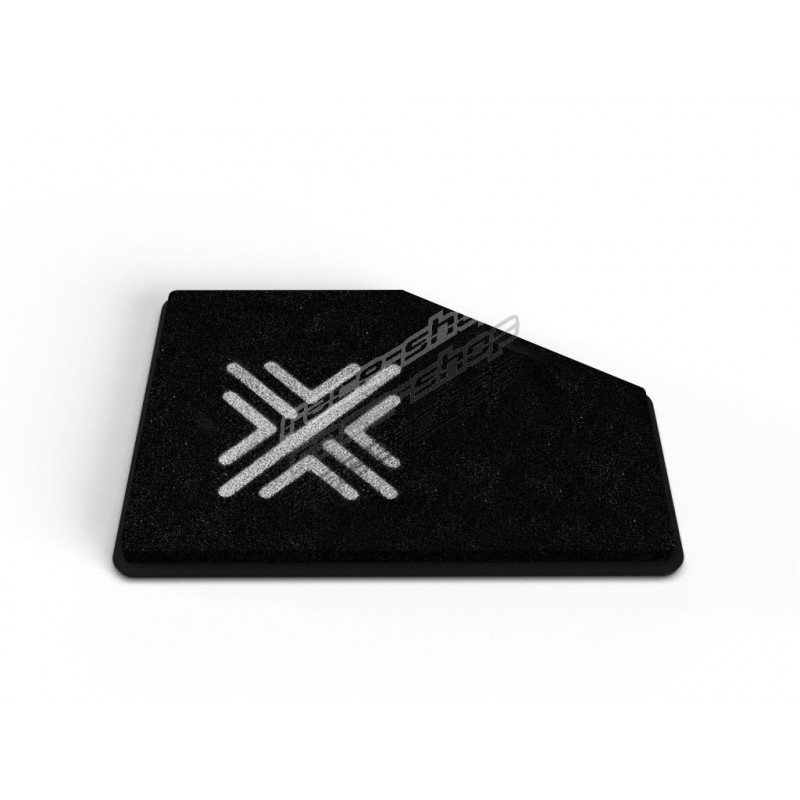

Replacement air filter Pipercross PP2034

Cross-reference

K&N: 33-5049

Ramair: --

Easy installation by replacing the original filter without further modifications.

Advantages of Pipercross foam air filters:

• Capture more dirt than paper and cotton filters
• Passes 30% more air
• Longer lifetime even compared to cotton filters
• Easy to clean because dirt is not trapped in the V-grooves
• Lifetime warranty if used in normal operation
• Can be cleaned and reused
• All Pipercoss filters are manufactured in the UK

Most filters are supplied un-impregnated!

Length: 350mm
Width: 231mm
Height: -mm

MAINTENANCE GUIDE

Take the air filter out from the intake box.

Use the compressed air to remove the dirt from the other side of the dirty side.

Apply Pipercross cleaner onto both sides evenly. (CAUTION: THE USE OF ANY OTHER CLEANING SOLUTION OR METHOD COULD DAMAGE THE FILTER! i.e. use of water, steam, or chemicals, gasoline, transmission fluid, motor oil, lightweight oil, or diesel fuel not specifically designed to clean non-woven material air filters )

Allow the cleaner to soak into both sides of the air filer for 10 minutes; afterwards, use the compressed air to remove dirt and cleaner. (Repeat steps 3 and step 4 until all spots of dirt are cleaned.)

Let the air filter dry naturally or use the compressed air to dry it. (CAUTION: OTHER DRYING METHODS COULD DAMAGE THE FILTER!)

Apply proper amount of air filter cleaning oil evenly onto the dirt side of the air filter only. (CAUTION: DO NOT OVER OIL AIR FILTER! OVER-OILING MAY INTERFERE WITH THE PERFORMANCE OF THE ENGINE.）

Reinstall the air filter back to the intake box; make sure that the intake box is securely fastened.

Service the air filter at least every 5,000Km to maintain optimum performance. We recommend the air filter to be serviced more often after off-road and high-speed riding. Always inspect your air filter whenever you change your oil.
