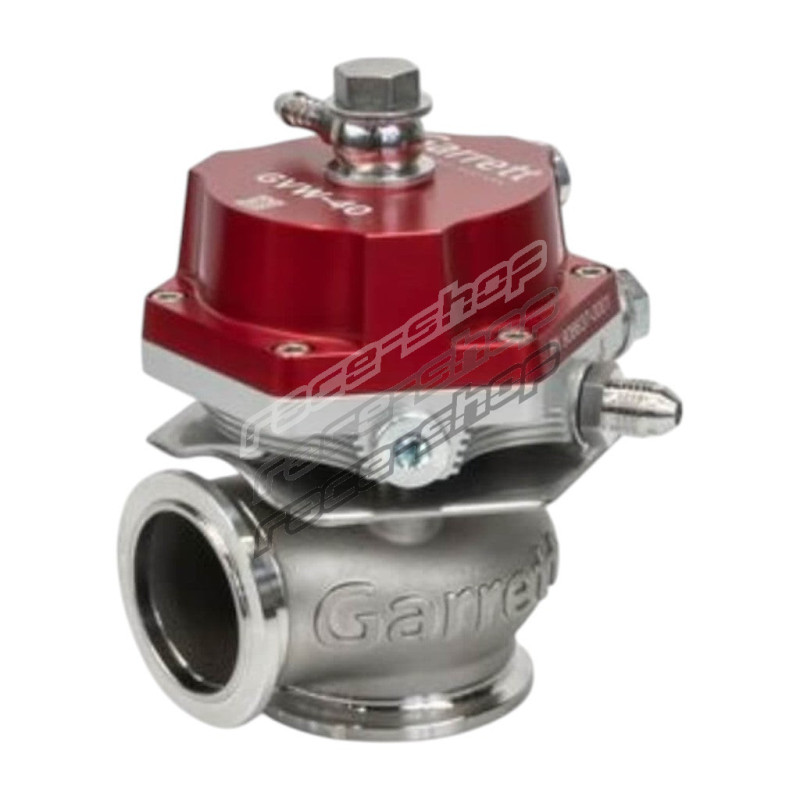

Garrett 908828-0001 External Wastegate GVW-45 1 Bar, Red

Garrett GVW-45 external wastegate — regulates turbocharger shaft speed by venting exhaust gas around the turbine stage, with CFD-optimised flow and precise boost control.

The GARRETT 908828-0001 GVW-45 external wastegate in red is engineered to regulate turbocharger shaft speed by venting exhaust gases around the turbine stage.

Its CFD-optimized design ensures maximum flow and accurate boost control, while advanced thermal optimization increases diaphragm durability.

The cap construction allows for easy spring changes and simplified servicing of the GVW series.

With liquid-cooled actuator ports capable of reducing body temperature by up to 52%, the GVW-45 is highly suitable for extreme motorsport applications.

Specifications

• Valve diameter: 45 mm
• Type: external
• Base pressure: 1.0 Bar (14.5 PSI)
• Adjustable range: 0.2 Bar (3 PSI) – 1.6 Bar (23 PSI)
• Outlet: V-band
• Colour: Red

Features

• CFD-optimized design for maximum flow and boost stability
• Enhanced thermal resistance and actuation durability
• Replaceable valve and bushing components for extended lifespan
• Robust cap design for simplified diaphragm replacement
• Liquid-cooled actuator ports (up to 52% temperature reduction)
• Red anodized aluminum actuator cover
• Four color options: Red, Blue, Black, Silver
• Available sizes: 40 mm / 45 mm / 50 mm / 60 mm
